Food Analysis

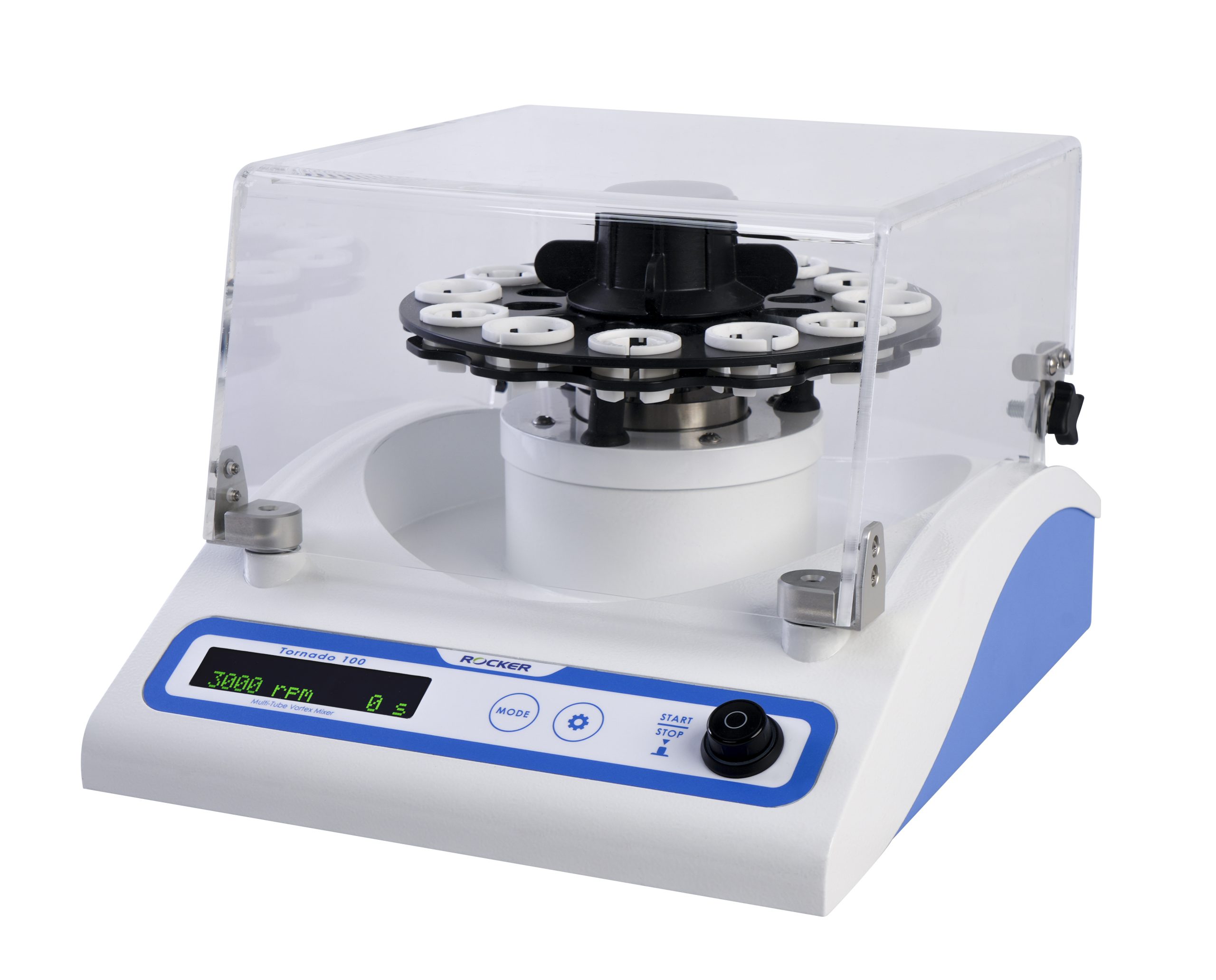

Tornado 100 Multi-tube vortex mixer
◆ Innovative 3D shaking motion
◆ Designed for QuEChERS
◆ Dual modes
◆ High safety
◆ Compact size without displacement
◆ International certification
◆ One-Year Warranty
◆ Designed for QuEChERS
◆ Dual modes
◆ High safety
◆ Compact size without displacement
◆ International certification
◆ One-Year Warranty
- Instruction
- Specification
- Tech Support
Tornado 100 Multi-tube vortex mixer: Features
- Innovative 3D shaking motion
By adopting special 3D oscillation with a maximum speed of 3000 rpm, the samples can be mixed thoroughly. - Designed for QuEChERS
The rack can be fully assembled and disassembled, making it easy to operate and clean. It accommodates 15 mL or 50 mL centrifuge tubes, making it particularly suitable for QuEChERS. - Dual modes
With continuous mode and intermittent mode, users can choose the operation mode depending on samples and methods, provides high flexibility. - High safety
The instrument operates only when the safety shield is securely closed and immediately stops when the shield is opened, enhancing operational safety and preventing liquid splashes.
- Compact size without displacement
Tornado is 80% smaller than traditional high-speed shakers and is designed to prevent displacement. - International certification
CE certification
RoHS certification
- One-Year Warranty
Tornado 100 Multi-tube vortex mixer: Application
- QuEChERS
- Animal drug test
- Pesticides test
- Sample pretreatment: blending
Tornado 100 Multi-tube vortex mixer:Ordering Information
Part Number | Description |
---|---|
193100-01(02) |
Tornado 100 Multi-tube vortex mixer, AC100-240V, 50/60Hz, US plug (EU plug) |
193000-01 |
Rack, 50 mL x 6 + 15 mL x 6 |
Model | Tornado 100 |
PERFORMANCE DATA | |
Speed | 0 ~ 3000 rpm (w/o sample) |
Timer |
|
Operation mode |
Continuous mode / Intermittent mode |
Applicable vials |
15 mL centrifuge tube (Ø 16.5~17.0 mm) |
Max. loading | 420 g |
Display | OLED |
Noise | 65 dB @max. rpm |
Net Weight | 12.1 Kg |
Dimension (L×W×H) | 36 x 30 x 24 cm (with safety shield) |
ELECTRICAL DATA | |
Voltage | 100-240V |
Frequency | 50 / 60Hz |
Max. power | 130W |
Safety | Safety Shield, Overheat Protection, Fuse |
Documents
![]() |
Tornado 100 |
