Lab Filtration
Filtration Apparatus Features
- Quick and easy disconnection with screwthread connector at side arm.
- Equipped with spill-proof silicone fixing sucker.
Filtration Apparatus Video
Filtration Apparatus Applications
- Solvent purification and solvent filtration
- Vacuum filtration
- Microbiological test
- Suspended solid analysis
Filtration Apparatus Ordering Information

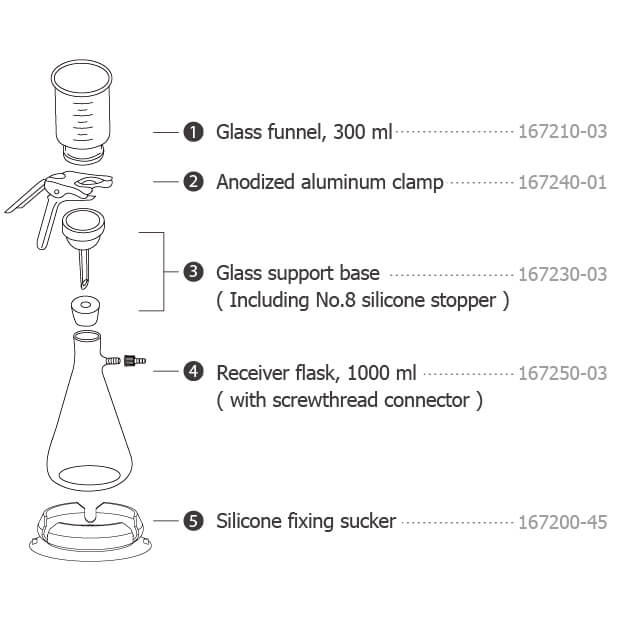

| Part Number | Description |
| 167200-06 | VF 6, Glass Filtration Set (includes the following) |
| 167250-03 | (4) Receiver flask, 1000mL (with screwthread connector) |
| 167200-45 | (5) Silicone fixing sucker |
| 167120-31 | Glass filter holder 300 mL (it includes 1/2/3) |
| 167210-03 | (1) Glass funnel, 300mL |
| 167240-01 | (2) Aluminum camp, 47mm |
| 167230-03 | (3) Sintered glass support base ( including No.8 silicone stopper) |
| Material: ▸ Funnel: Borosilicate glass ▸ Support base: Borosilicate glass ▸ Membrane support: Sintered glass ▸ Clamp: Aluminum ▸ Stopper: Silicone rubber ▸ Receiver flask: Borosilicate glass |
Specification: ▸ Funnel capacity: 30 mL ▸ Flask capacity: 1000 mL ▸ Filter diameter: 47mm ▸ Hose barb: ID8 ▸ Effective filtration area: 13.2 cm2 |
