- Quick-assembly and disassembly
Each component can be easily removed for cleaning and autoclaving .
- SS316 stainless steel
All wetted parts of MultiVac 300 manifold are made of SS316 stainless steel, which is more durable.
- Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
- Innovative vent valve design
Adjustable vent valve eliminates water hammer phenomenon and helps drain residual liquid in pipe.
- Individual control valve
Control feeds of each filter holder individually.
- Use with ROCKER SF funnels
Use MultiVac 600 – MB with ROCKER SF funnels. These stainless steel 316 funnels can be sterilized with flame and made this system super handy for microbiological tests.
Multi-Branch Manifold Videos
Multi-Branch Manifold Applications
Multi-Branch Manifold Ordering Information

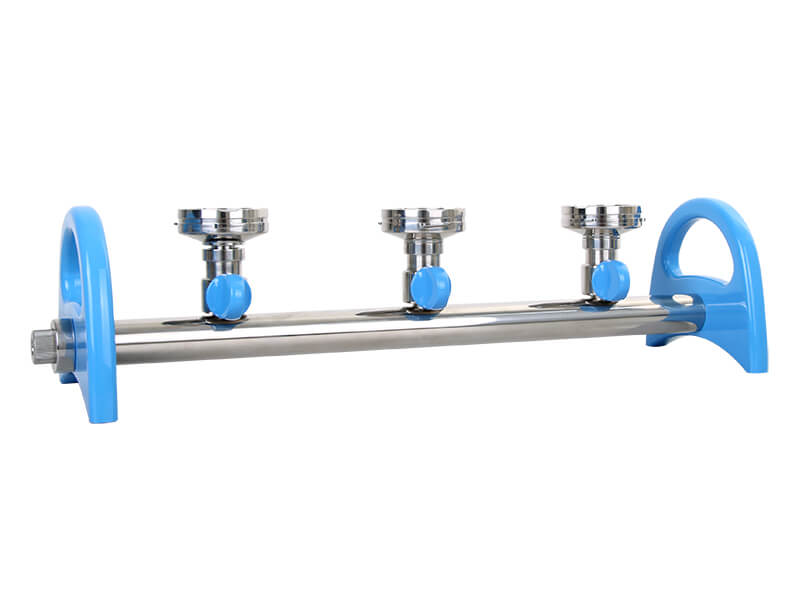

MultiVac 300 Vacuum Filtration Manifold Specification
▸ Number of branch: 3
▸ Filter diameter: 47 mm
▸ Funnel capacity: 100 ml / 300 ml / 500 ml (optional)
▸ Hose barb: ID8 (5/16 inch)
▸ Dimension (LxWxH): 48 x 13 x 11 cm
▸ Body: SS316
▸ Control valve: SS316
▸ Adaptor: SS316
▸ Membrane support: SS316
▸ Hose barb / Vent valve: SS316
▸ Handle / Knob: Aluminum
